Reinforced Concrete
Building

CIVE7785 · Produce Reinforced Concrete Drawings · 2026

Three AutoCAD drawings for a 2-storey reinforced concrete building — footing plan layout, reinforcement column details, and a final column and pad footing detail.

All drawings produced in accordance with Australian Standards (AS 1100.501, AS 3600).

View PDF Download PDF
AT1 Stage 1 · Scale 1:100

Footing Plan

Layout of nine reinforced concrete columns (C1A–C3D) and pad footings (FP1A–FP3D) with a full member schedule — footing sizes range from 1000×1000×600 mm to 1500×1500×700 mm deep.

Footing plan — RC column and pad footing layout with member schedule

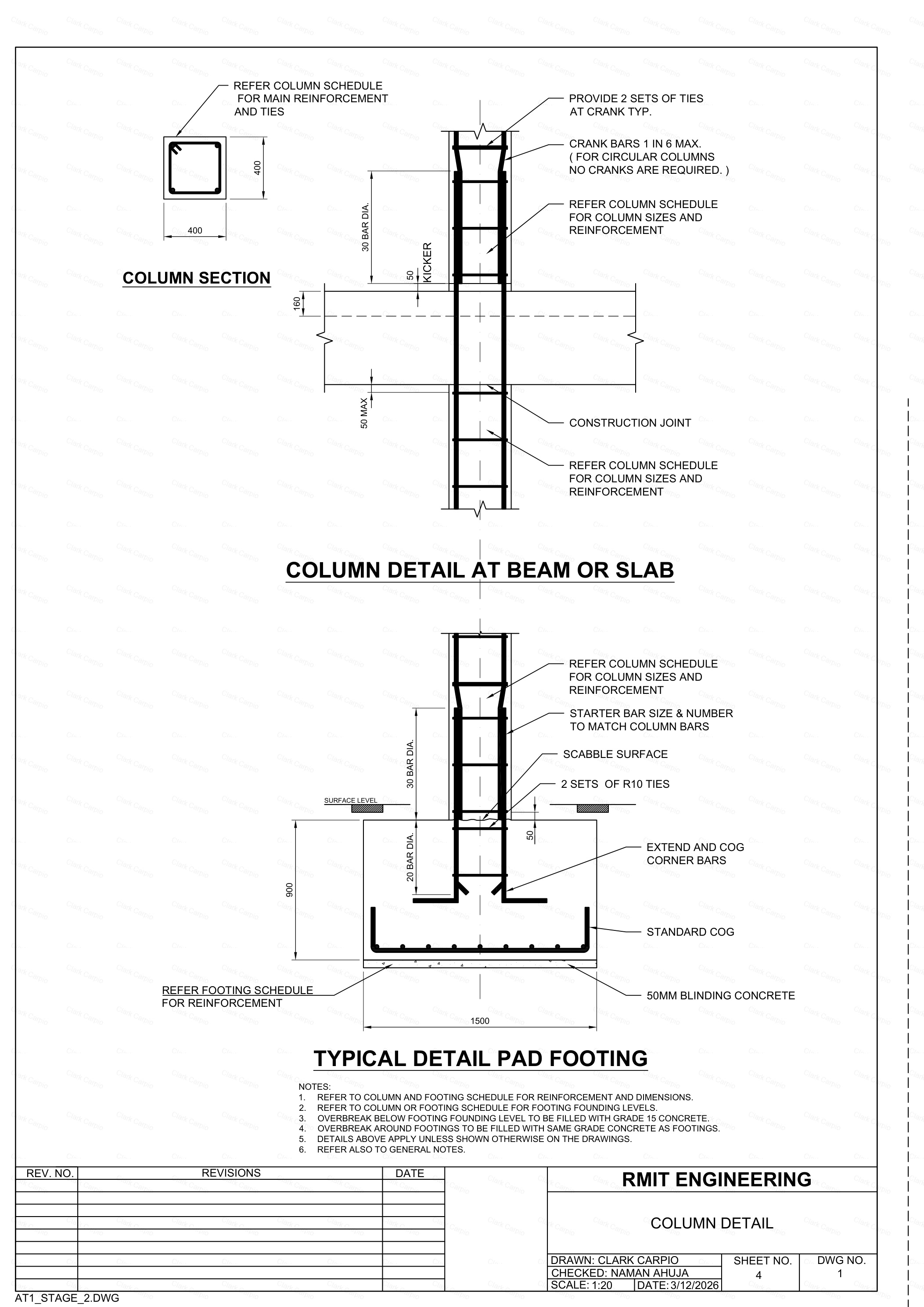

AT1 Stage 2 · Scale 1:20

Column Detail

Reinforcement detail for RC columns — kicker configuration, crank bars at 1:6 gradient, two sets of ties at cranks, construction joint, and a typical pad footing section showing blinding concrete and bar cog layout.

Column detail — reinforcement, kicker, crank bars, and pad footing section

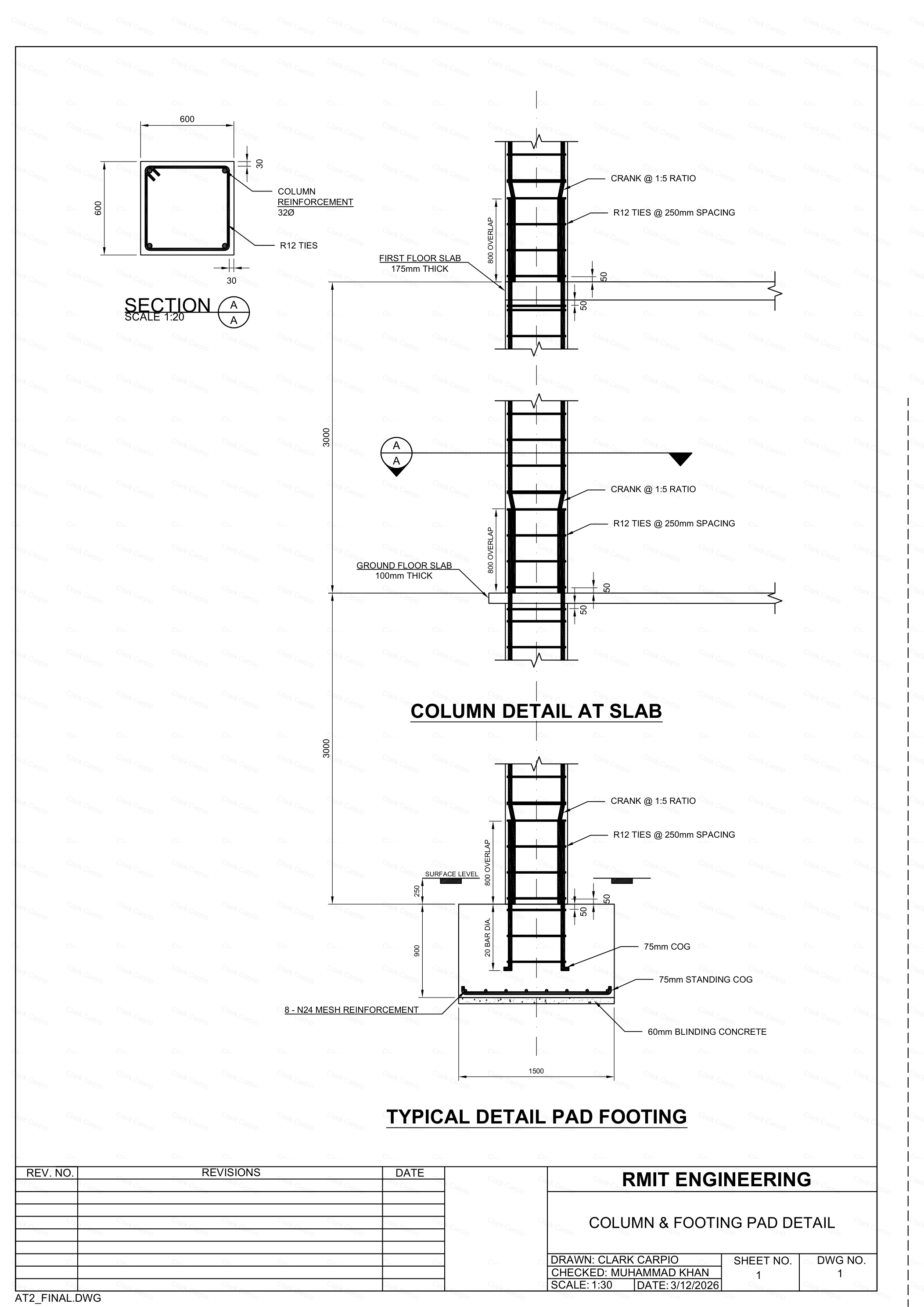

AT2 Final · Scale 1:30

Column & Footing Pad Detail

Final polished drawing — column section through first-floor and ground-floor slabs with 8-N24 bars, R12 ties at 250 mm spacing, crank at 1:5, and a full construction detail of the 1500 mm pad footing with 60 mm blinding concrete.

Final column and pad footing detail — floor-to-floor reinforcement and footing construction
